Practical Products waterproof heat shrink solder electrical connectors are a innovative new wiring connection system for cable connections.

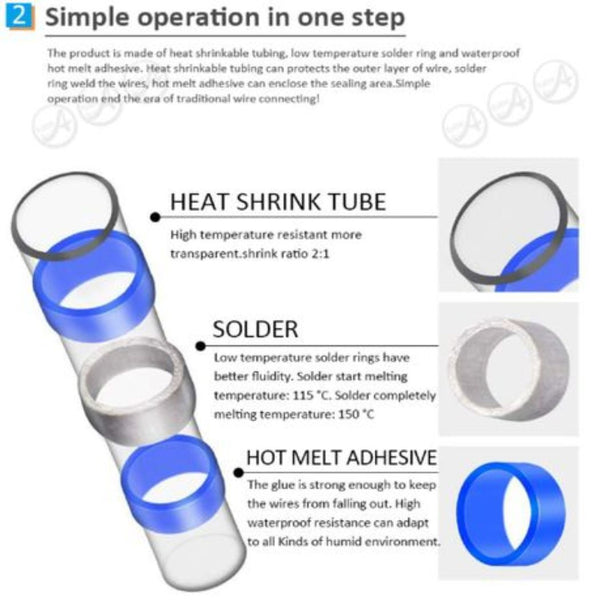

Transparent heat shrink tubing, solder and adhesive glue ring.

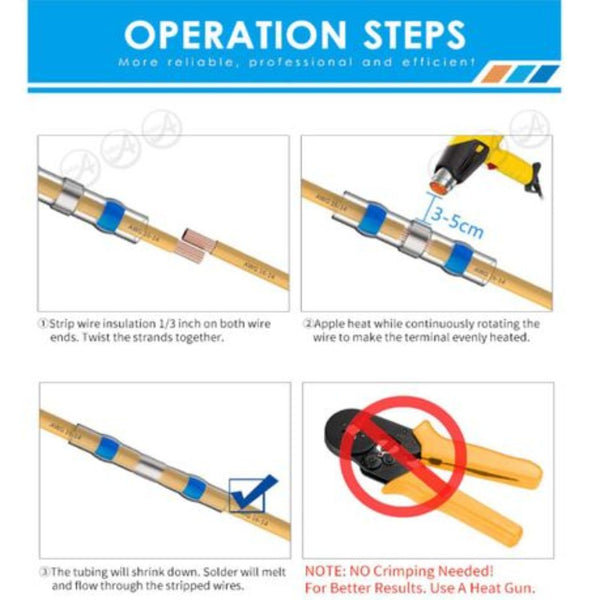

Simple one step soldering, sealed and insulated butt type connector.
Can be heated with soldering gun, blow torch or hot air heat gun
Finished connector ensures strong connection and waterproof type connection.
Application:

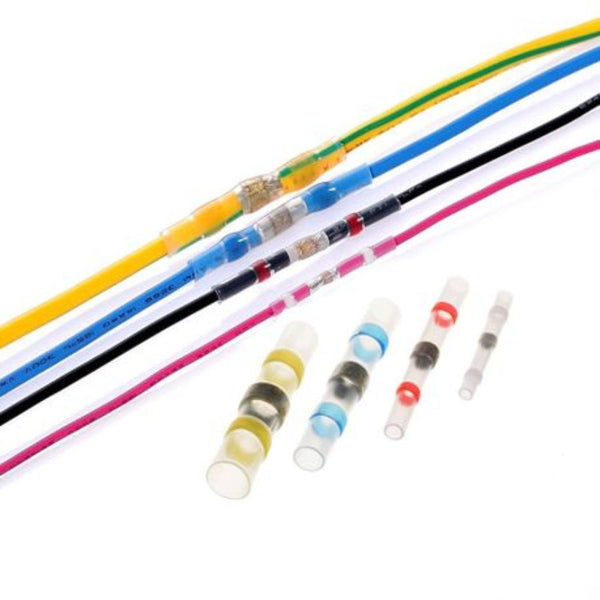

- Wire connecting - butt splice type, Wire to wire splicing
- Simple one step wire connections, no crimp tools required
- Connection type: solder through pre-formed solder ring
- IP Rating: 67
- Dielectric Strength: 1kV
- Certificate: ISO9001/CE/UL/ROHS
Material:
- Outer Material: Polyolefin tubing
- Operating Temperature: -55 C to 125 C
- Minimum shrink temperature: 80 C
- Minimum Solder melting temperature: 138 C
- Shrink ratio: 2:1

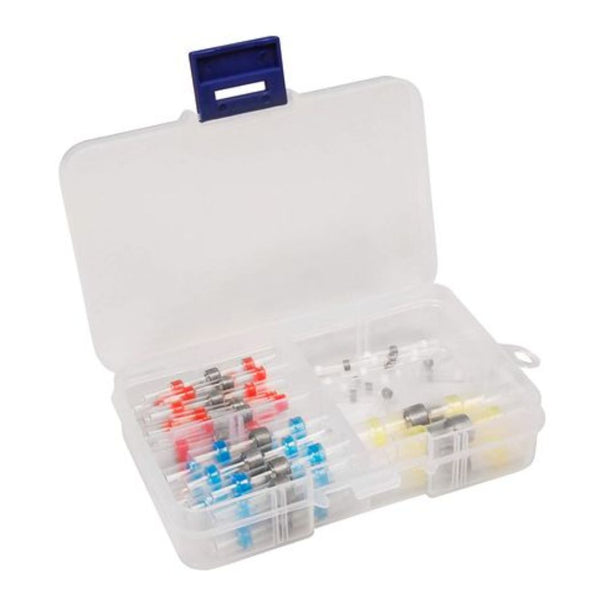

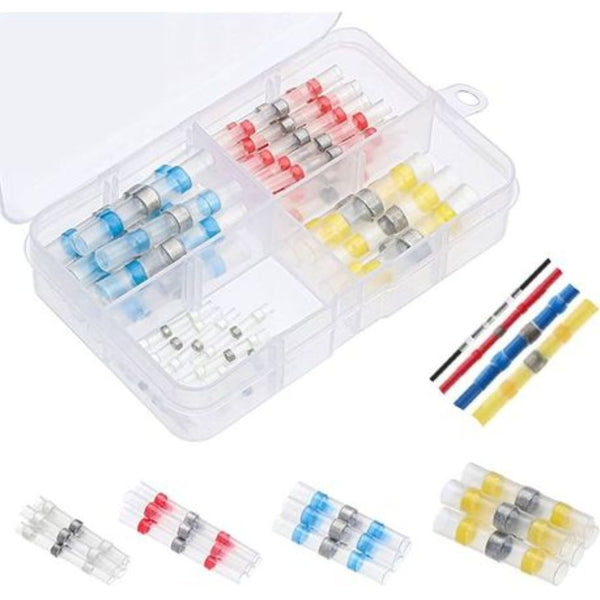

- 10 x S11 - White - 26-24 AWG (0.25-0.34 mm2)
- 23 x S21 - Red - 22-18 AWG (0.5-1.0 mm2)
- 12 x S31 - Blue - 16-14 AWG (1.5-2.5 mm2)
- 5 x S41 - Yellow - 12-10 AWG (4-6 mm2)
